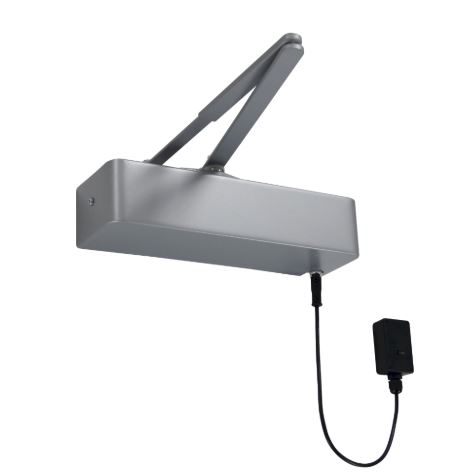

RESPONDER24 Electromagnetic Door Closer

• Fixed power  EN4 – does doors up to 80kg & 1100mm wide
• Hold-open & swing free in one box
  • Hold-open angle – 90° – 120°
• The electromagnet is activated by the fire alarm system, releasing instantly in the event of a fire alarm activation

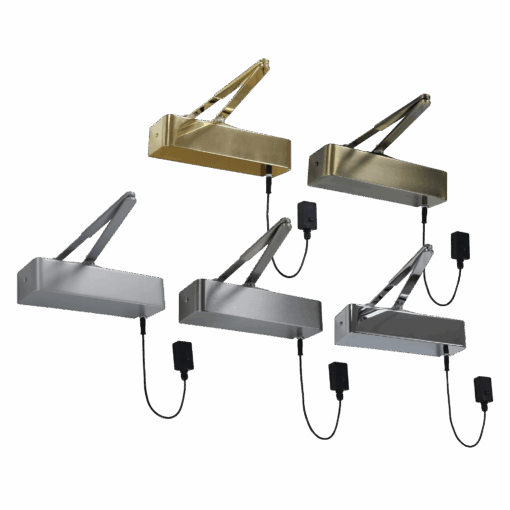

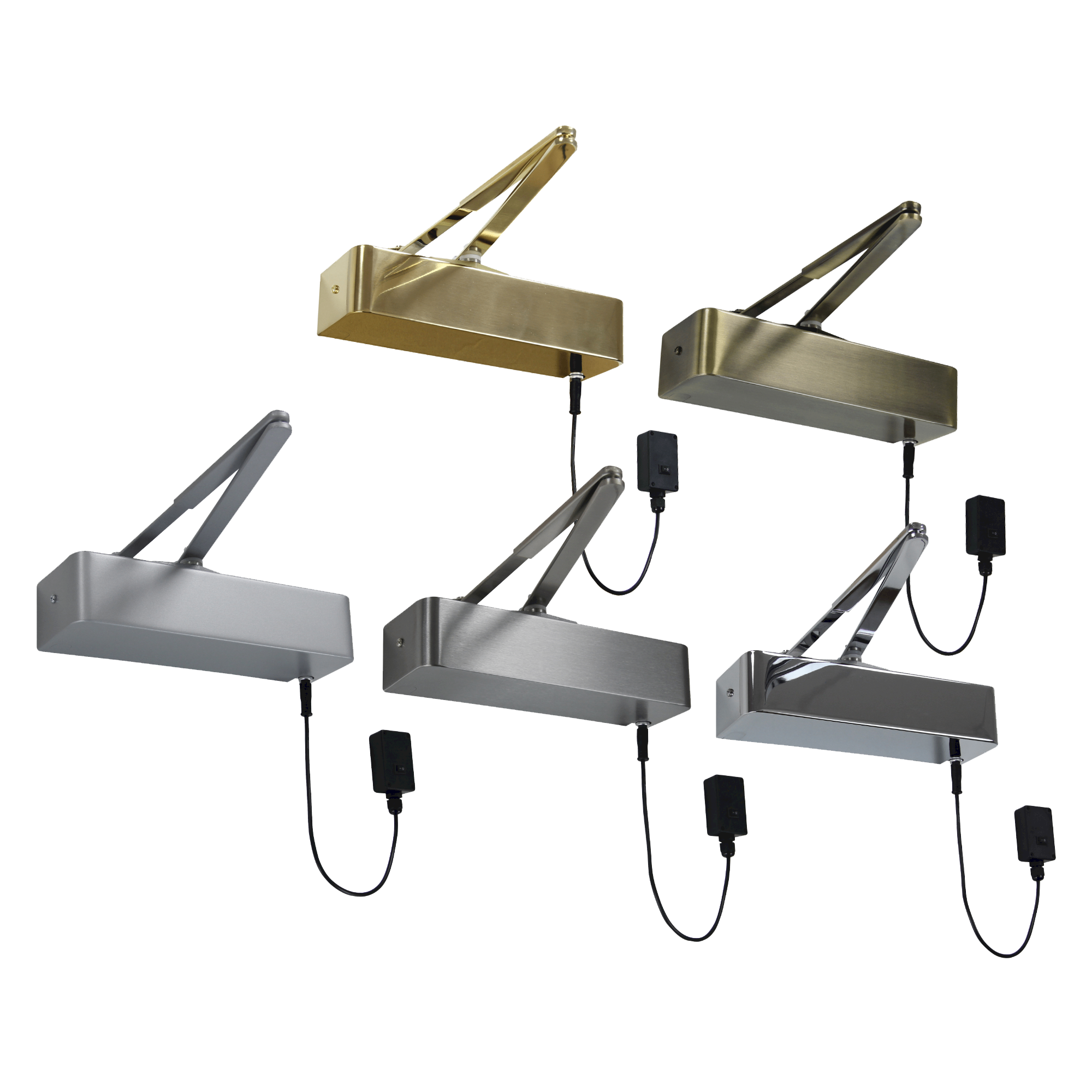

• Available in Silver, Satin Nickel, Polished Nickel, Polished Brass & Antique Brass for next day delivery
• Fire tested to BS EN 1634-1
• BS EN 1154 & BS EN 1155 tested
• 5 year guarantee

Designed for use with:

• PSU.1224.9 – Power Supply Unit

Recommended set-up

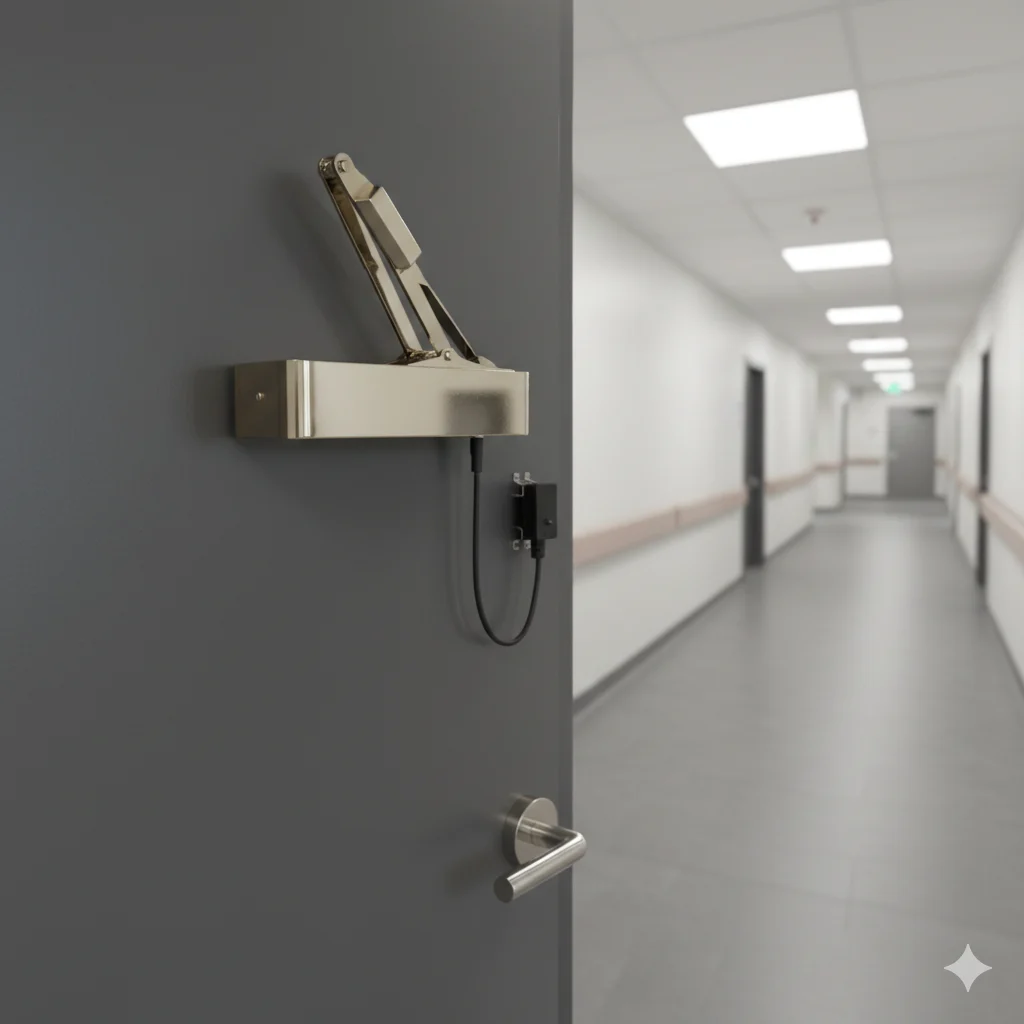

Corridor doors use Hold-open mode

Living and Bedroom doors use Swing-free mode

Voltage Output : 24v DC
It is recommended that for each E-Mag Door Closer (Responder 24 and FireTrak 114 & FireTrak 115) that a 1A Power Supply Unit is specified, however if fitting to double doors then a 2A Power Supply Unit can be used to operate the two E-Mag Closers.
